Grindex Bravo-900 Slurry Pump
Submersible slurry pumps for pumping fluids with abrasive solids.
The Bravo 900, our biggest slurry pump, is extremely wear-resistant thanks to the use of Hard-ironTM and the low shaft speed. Equipped with an agitator to enhance the 'up-stirring' capabilities it is a superior quality pump for all kinds of slurry applications.
Also available in Explosion Proof version.
Pump type
Electrical submersible slurry pump
Classification
IP 68
Max submersion
20 m/66 ft
Cable
20 m/66 ft SUBCAB This pump requires an external starter box
Discharge connection
Connection: Victaulic
Limitations
Allowed pH range: 5.5 - 14
Max liquid temp
40°C/104°F (70°C/158°F on request)

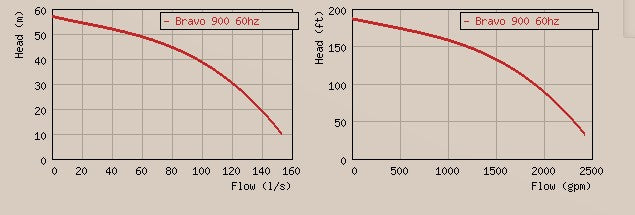

| 60 Hz | Bravo 900 |
| Discharge connection F | 6" |
| Rated power P2 [kW/hp] | 78 / 104,5 |
| Max. power consumption P1 [kW] | 84 |
| Shaft speed [rpm] | 1775 |
| Rated current at 460V | 125 A |
| Rated current at 575V | 101 A |
| Solids passage with agitator [mm/inch] | 36 / 1 2/5 |
| Height [mm/inch] | 1779 / 70 |
| Diameter [mm/inch] | 875 / 34½ |
| Weight [kg/lbs] | 845 / 1863 |
